EPSON380 H9

Modle

H9-120  H9-170  H9-190  H9-220

Features

Super large capacity cartridge, piezoelectric type nozzle , super long service life .

Nozzle, stable large ink cartridge , reduce the cost of consumables .

The new curved surface structure design, paper perfect fit, cutting,  printing effect is more perfect .

Independent double pressure wheel structure, more accurate .

Han-Bond blade holder: 12 adjustable stalls, fast and convenient .

Han-Bond blade: Japanese  OEM, service life is 3-10 times of the ordinary  blade .

Automatic paper cutting: one key cuts paper, fast and convenient .

Servo motor drive, high precision, low noise, long life .

Double feeding system (white paper and kraft paper )

Nozzle column width

EPSON 380=2*HP45=1 inch

Maximum printing speed

EPSON 380=5*HP45

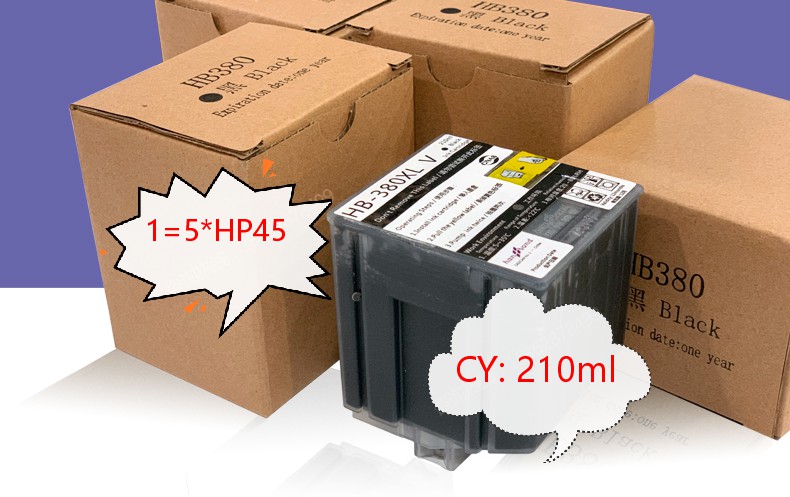

Ink cartridge capacity

EPSON 380 , 210ml/PCS =5*HP45 , 42ml/PCS

Consumptive material cost

EPSON 380=1/10~1/20*HP45

Print head service life

EPSON 380 = FOREVER

HP45 = one-off ( after 7-14 days exhausted )


Features:
1. one-click set printing start point
2.Paper Shortage Alarm and Auto Suspension
3. paper jam alarm and Automatic suspension
4. Standby protection of nozzle and automatic cleaning mechanism , suitable for global climate including desert climate
5. Set parameters online without downtime
6. Automatic paper cutting when end of printing ( END CUTTING)


Parameters


ModelH9-120H9-170H9-190H9-220

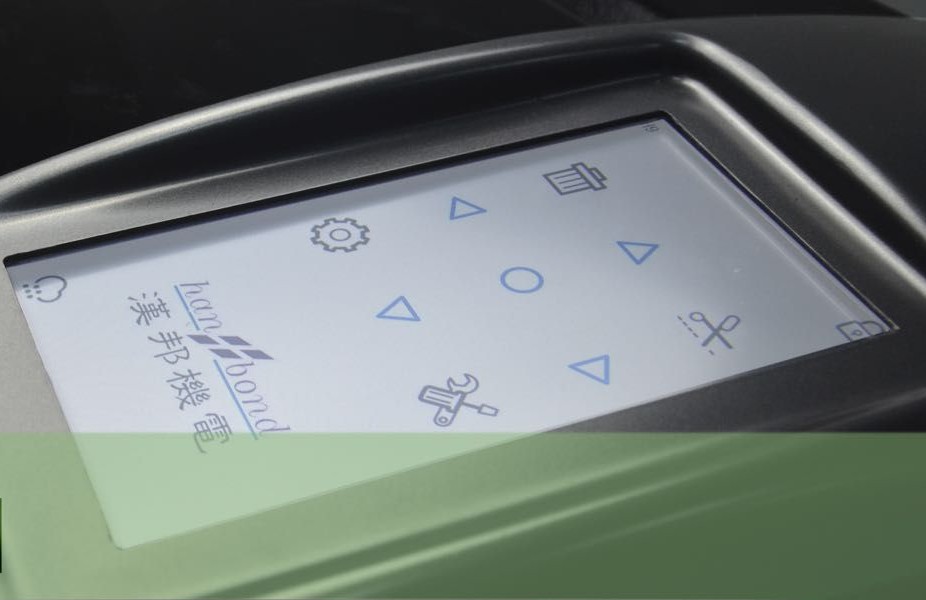

HMI
7" touch screen
Inkjet technologyEPSON 380
Resolution360dpi
Blade
Japanese OEM,service life is 3-10 times of the ordinary blade
Plotting material60g-300g marker/pattern paper
 Working width1200mm
1700mm1900mm2200mm
Paper feeding methodAutomatic double-feed system (white paper and kraft paper installed at the same time)
Max Cutting Speed120cm/s
Max Printing Speed80㎡/h100㎡/h
105㎡/h110㎡/h
Compatible softwareVarious CAD software
Transmission portUSB2.0
Power supply110/220V±20% / 50~60Hz    220W
Machine dimensions1850*550*1100mm2320*550*1100mm2570*550*1100mm2860*550*1100mm
Package dimensions 2020*650*590mm2490*650*590mm2740*650*590mm3030*650*590mm
