Standard Digitizer

Modle

D-A0

Features

Be compatible with all kinds of garment CAD software .

Quality stable, don't need careful maintenance .

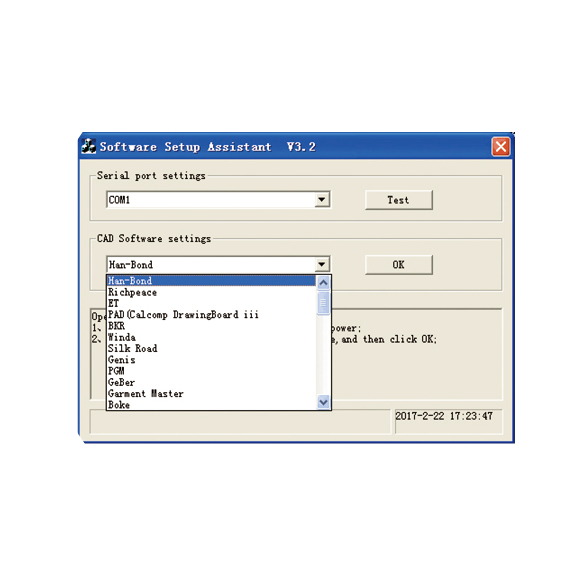

One-click link, easy to operate .

Han-bond Gerber Lectra OPTITEX Gemini

PAD PGM Richpeace INVES ET ECHO ORICAD Windan SILK ROAD GENIS BOK RIGHT ARISA Eastmark Modasoft


Parameters


                           Model                                                       D-A0
                      Working area                                              1219mm*914mm
                    Working principle                                Electromagnetic  induction  principle
                     Operation mode                                            16-key cursor with wire
                     Accuracy grade                                           0.2mm civil-level accuracy
                    Scaffold structure                                        Liftable and adjustable angle
                          Interface                                                  Standard RS-232
                 Data transmission speed                                                    10-100 pairs/s
                        Power supply                                                 110/220V 50/60HZ
                    Machine dimensions                                            1410mm*1105mm*950mm
                    Package dimensions                                             1536mm*1250mm*88mm
