HP45 Technology

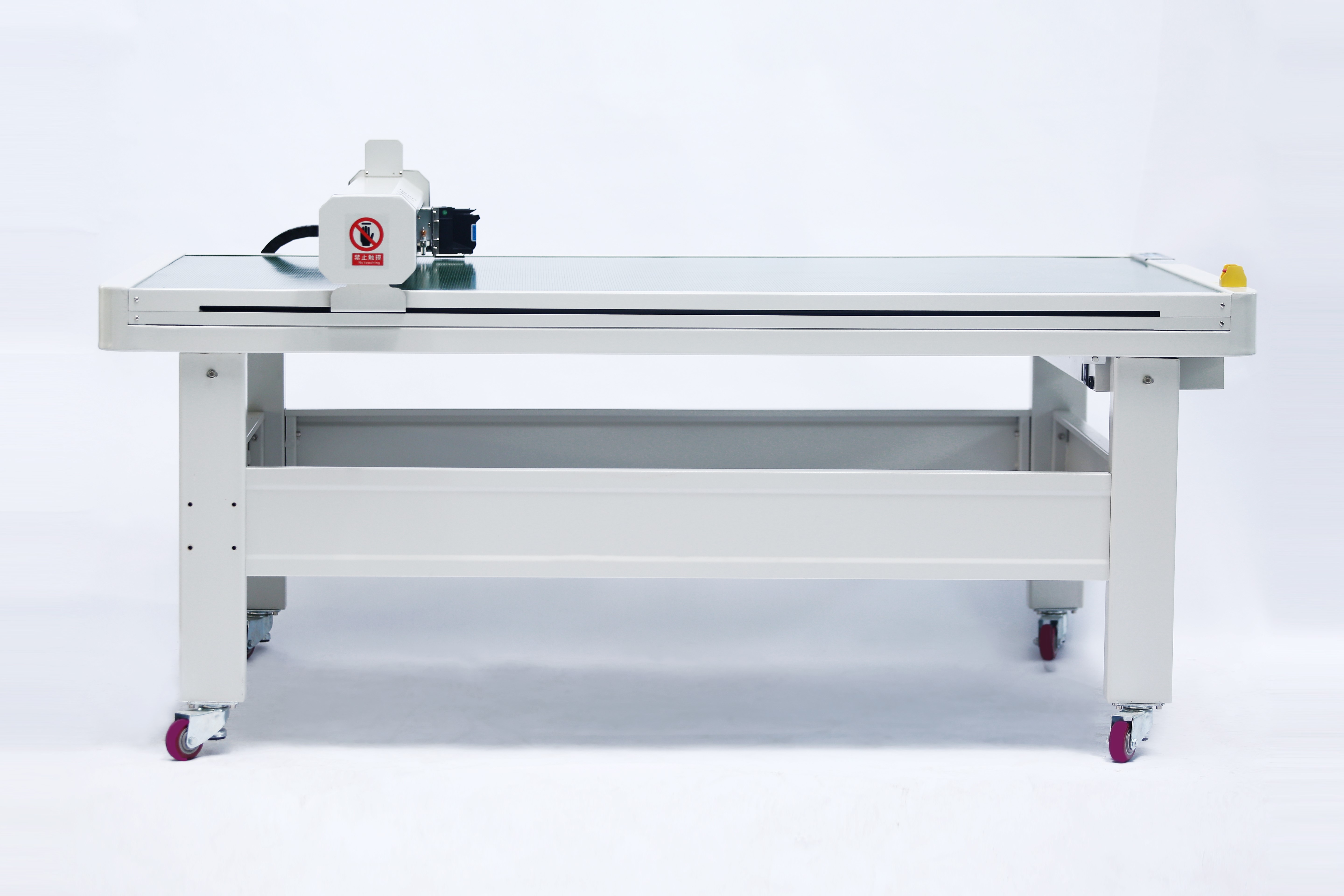

Modle

HB-1209P  HB-1512P

Features

No code ,curve smooth without shaking .

Intelligent automatic identification and optimization of the file data .

Frame platform design and manufacture according to the standard of NC  Machine .

Accept the bespoke specifications, the maximum cutting area can do 3000*1600 mm .

Parameters

ModelHB-1209PHB-1512P

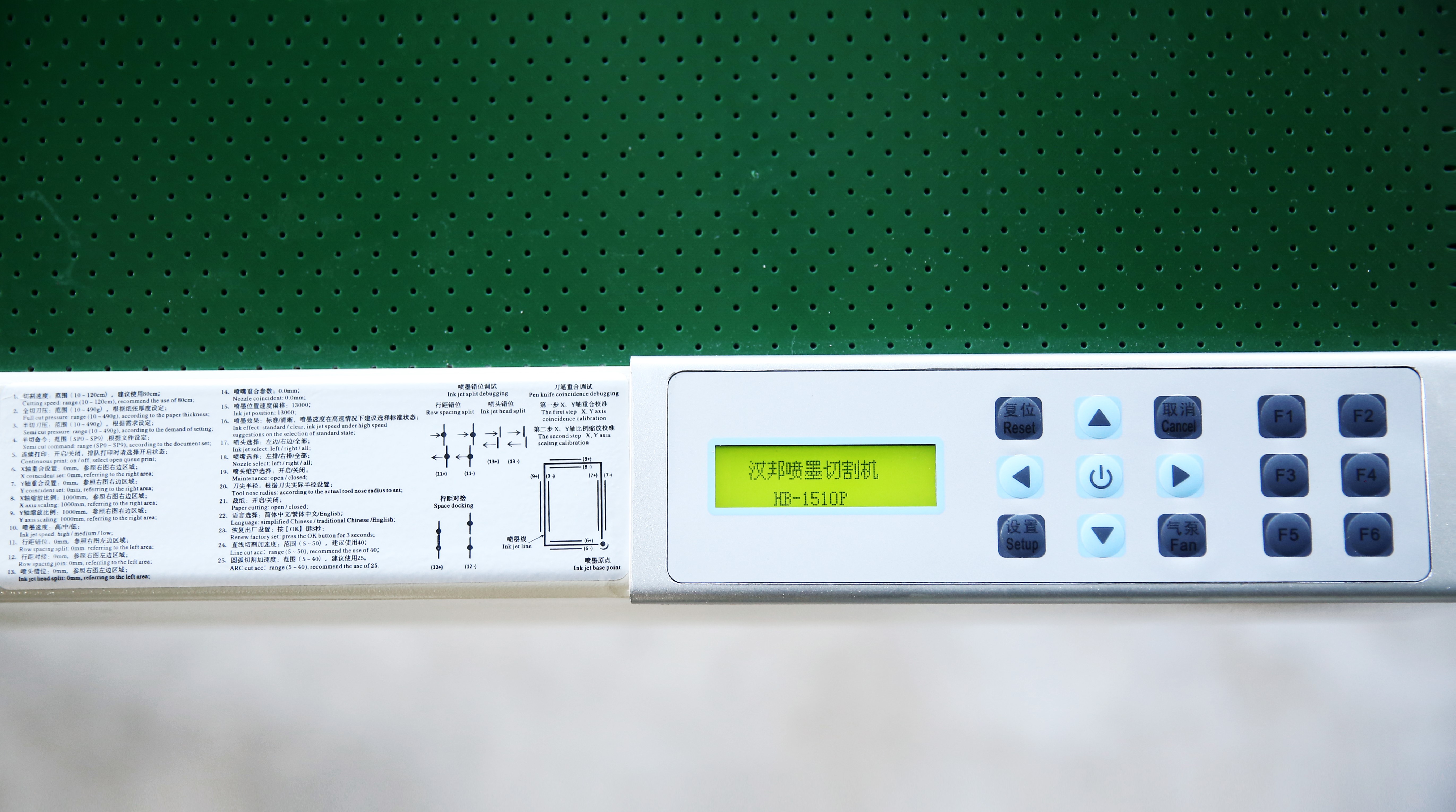

HMI LCD

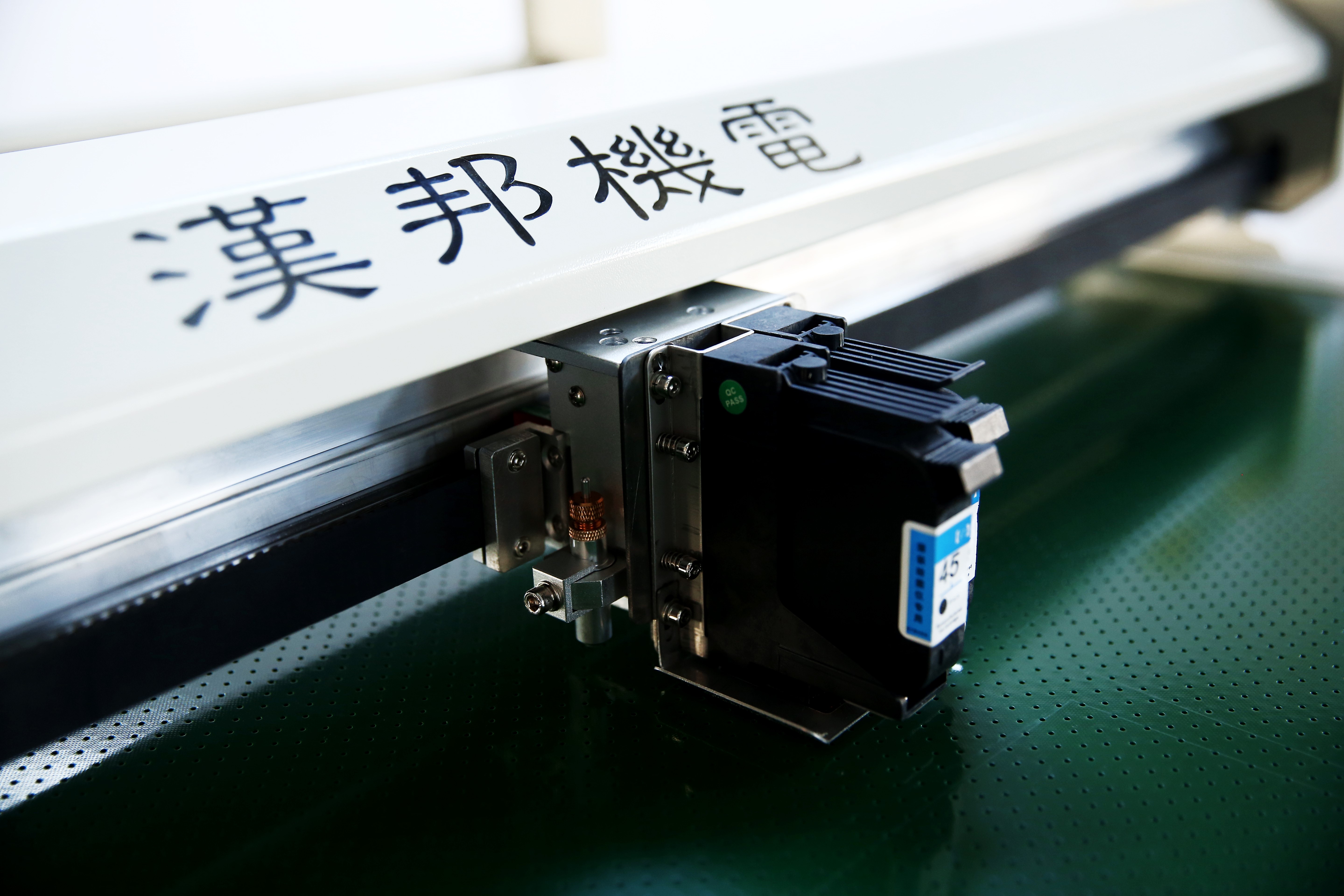

Inkjet technologyHP45
Resolution600/300dpi
BladeJapanese OEM , service life is 3-10 times of the ordinary  blade
Cutting thickness60g-600g
Cutting material Kraft paper ,  computer paper , plastic board , white cardboard and other fibers
The max cutting area1200mm*900mm1500mm*1200mm
Drive wayStep system
Inkjet speed60/h  90/h
Data formatCompatible with any garment CAD format, HP-GL, DXF
Pump power1.5KW
Transmission portUSB2.0
Power supply110/220V±20% / 50~60Hz  2kW
Machine dimensions1920*1340*1035mm2220*1640*1035mm
Package dimensions2000*1470*530mm2300*1770*530mm
