Multilayer Cutting Machine


iCut-2520            iCut-3220           iCut-3216



        High-precision multi-functional CNC cutting machineis specially eveloped for mass production. This series of cutting machine is suitable for the garment industry,shoes and hats industry,luggage industry,automotive interior industry,home industry,sofa seat industry,plush toy industry,composite fabrics and other soft material cutting fields. After adsorption, it can reach standard thickness of 8cm. Thecutting machine has excellent cutting speed and maintains the highest precision among the same type of cutting machine.It has excellent energy-saving, low-carbon and intelligent high-tech products.

   ■Machine tool advantage: high transmission precision, higtn dimensional accuracy, good rigidity, stable start and stop, and stable transmission speed
   ■ Operation advantage: Advanced module technologycombined with intuitive touch technology for easy operation automatic fault alarm function for easy diagnosis and treatment.
   ■ Software advantage: Integrated software with easy-to-use control methods and visual management system for multi-angle full-scale
   ■ Cutting advantage: high cutting precision, no deformation, less lint, high efficiency
   ■ Consumables advantage: Spin-type double-sided sharpening knife, can cut more than 10,000 pieces per day, long working time and high efficiency

Standard Configuration

  • HANCorebladeintelligence4.0system

  • Automatic covered film

  • Five shafts double blade plate

  • Frequency conversion vacuum system

  • Dust-collection system

  • Levitation blade

  • Automatic blade sharpening

  • Air cooling system

  • 303 HAN Core blade

  • Maintain partial vacuuming during advance

  • Safety device

  • Spindle synchronous drive

  • Film unfolding assistance

Option configuration

  • Max cutting height 11cm

  • Hollow punching device

  • Solid punching device

  • Moving system

  • Automatic lubrication+Oil cooling system

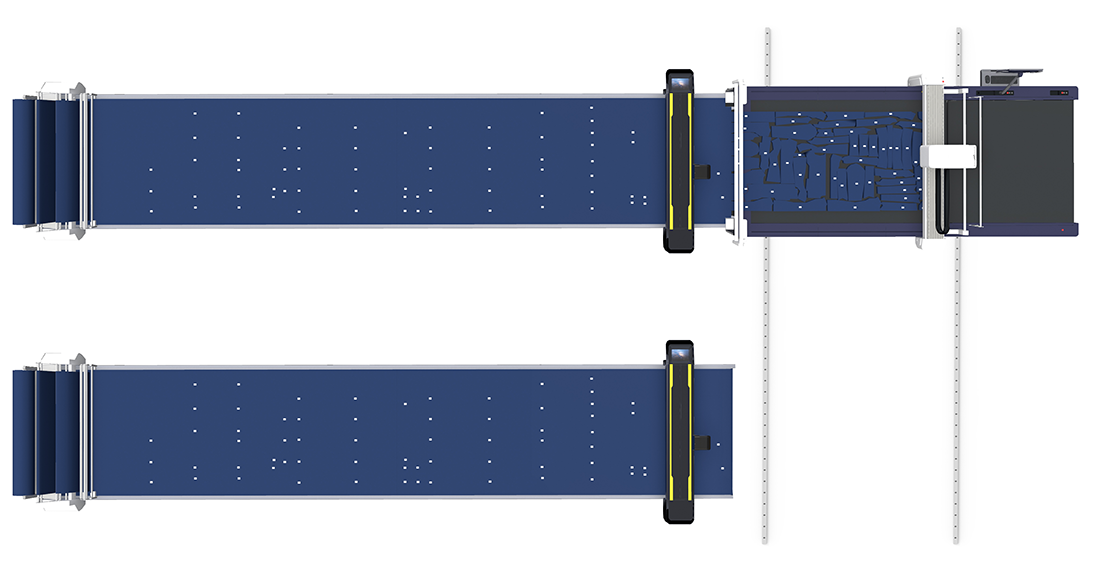

Layout plan



Machine SizeiCut-2520iCut-3220
Max Cutting Area5800*2700*1400mm7500*2700*1400mm7500*2300*1400mm
Machine net weight4000KG4500KG4000KG
Machine Cutting Height80mm
Machine Cutting Speed108m/min
Power SupplyAC 380V/50HZ
Spindle Power2kw
Spindle Speed6000rpm
Machine Power22kw
Air Pressure0.8MP
Air Flow Volume160L/min
Export Packing40Ft ContainerFrame Cabinet Size 8000*3000*2100mm
