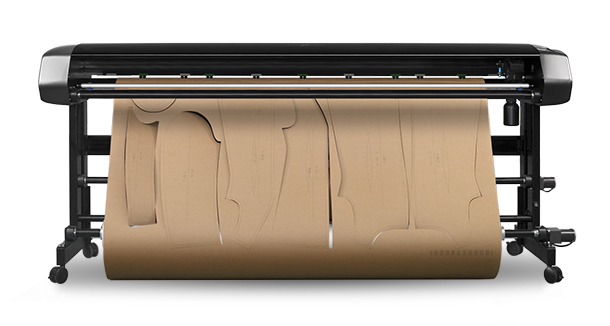

H9-120 H9-170 H9-190 H9-220
H9
Model
Features
Super large capacity cartridge, piezoelectric type nozzle , super long service life .
Nozzle, stable large ink cartridge , reduce the cost of consumables .
The new curved surface structure design, paper perfect fit, cutting, printing effect is more perfect .
Independent double pressure wheel structure, more accurate .
Han-Bond blade holder: 12 adjustable stalls, fast and convenient .
Han-Bond blade: Japanese OEM, service life is 3-10 times of the ordinary blade .
Automatic paper cutting: one key cuts paper, fast and convenient .
Servo motor drive, high precision, low noise, long life .
Double feeding system (white paper and kraft paper )
Parameters
| Model | H9-120 | H9-170 | H9-190 | H9-220 | |||||||||

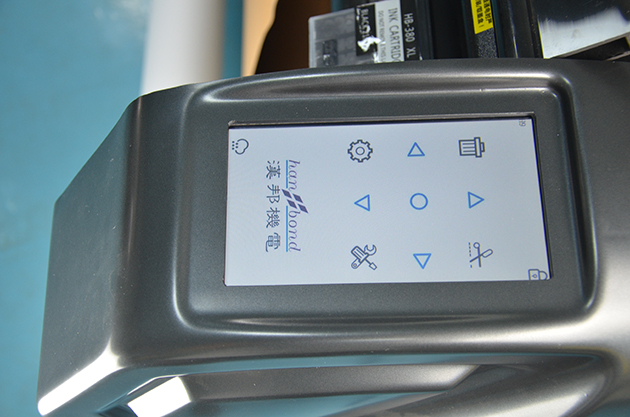

| HMI | 7" touch screen | ||||||||||||
| Type of ink cartridge | EPSON380 | ||||||||||||
| Resolution | 360dpi | ||||||||||||
| Blade | Japanese OEM ，service life is 3-10 times of the ordinary blade | ||||||||||||
| Cutting material | 60g-300g marker/pattern paper | ||||||||||||
| Working width | 1200mm | 1700mm | 1900mm | 2200mm | |||||||||
| Paper feeding method | Automatic double-feed system (white paper and kraft paper installed at the same time) | ||||||||||||
| Max Printing speed | 80m²/h | 100m²/h | 105m²/h | 110m²/h | |||||||||
| Max cutting speed | 120cm/s | ||||||||||||
| Compatible software | Various CAD software | ||||||||||||
| Transmission port | USB2.0 | ||||||||||||
| Power supply | 110/220V 50/60Hz 220W | ||||||||||||
| Machine dimensions | 1810*500*1100mm | 2330*500*1100mm | 2580*500*1100mm | 2870*500*1100mm | |||||||||
| Package dimensions | 1960*640*610mm | 2480*640*610mm | 2730*640*610mm | 3020*640*610mm | |||||||||
